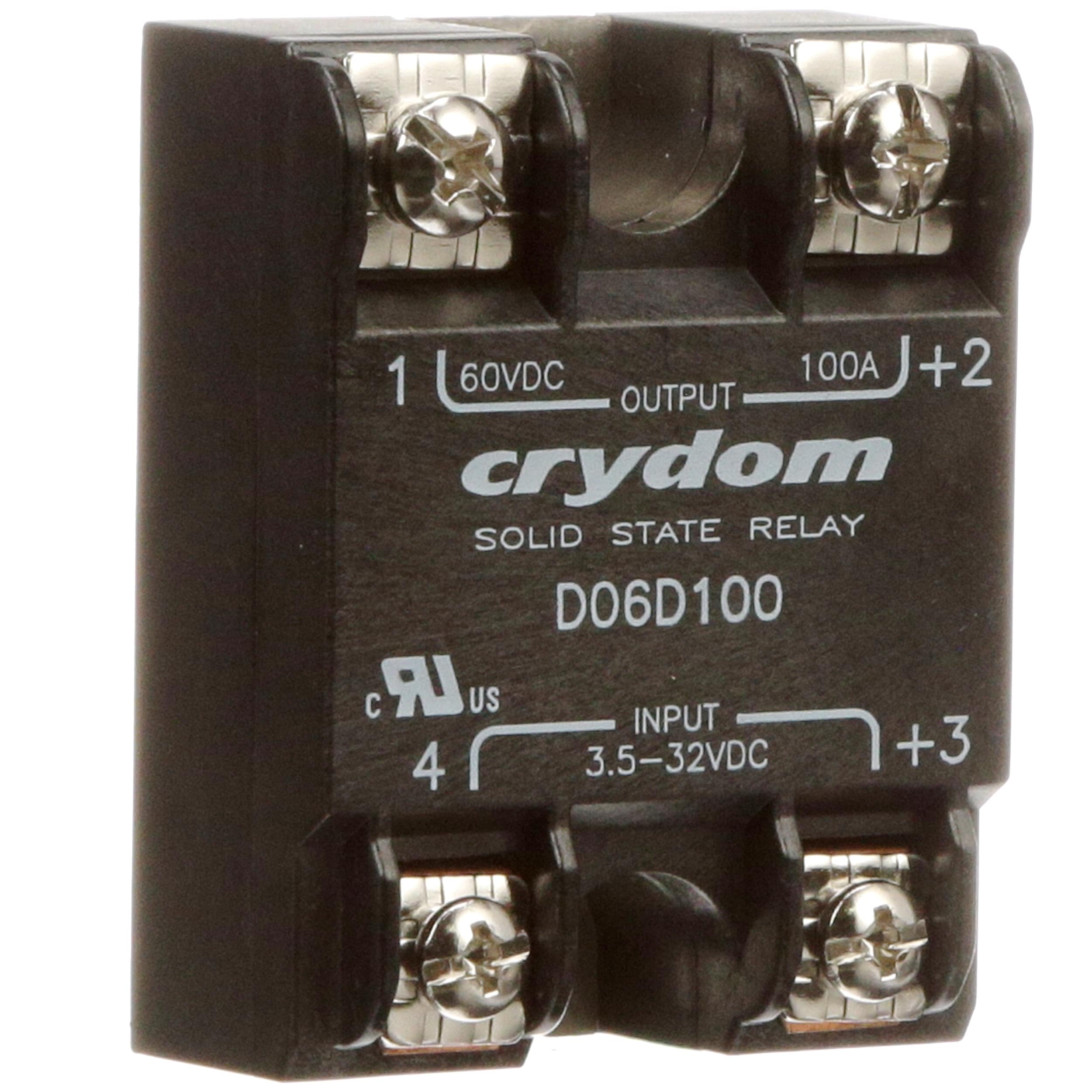

D06D100
Sensata
Solid State Relays
SSR, 100A, 60VDC
Характеристики
| Control Voltage Range | 3.5V DC to 32V DC |
| Operating Voltage Range | 0V DC to 60V DC |
| Load Current | 100A |
| Isolation Voltage | 2.5kV |
| Control Voltage Type | DC |
| Relay Terminals | Screw |
| SVHC | No SVHC (20-Jun-2011) |
| Control Voltage DC Max | 32VDC |
| Control Voltage DC Min | 3.5VDC |
| Current Rating | 100A |
| External Depth | 22.9mm |
| External Length / Height | 47.5mm |
| External Width | 45.7mm |
| Insulation Resistance | 1000Mohm |
| Leakage Current | 0.3mA |
| Load Current Min | 5mA |
| Load Current RMS Max | 100A |
| Load Voltage DC Max | 32VDC |
| Load Voltage DC Min | 3.5VDC |
| Operating Temperature Max | 80°C |
| Operating Temperature Min | -30°C |
| Output Type | MOSFET |
| RMS Load Current Min | 5mA |
| RMS Load Voltage Max | 60VDC |
| Series | D06D |
| Single Cycle Surge Current | 270A |
| Surge Current | 270A |
| Terminal Type | Screw |
| Turn Off Time | 1.0µs |
| Turn On Time | 300µs |
