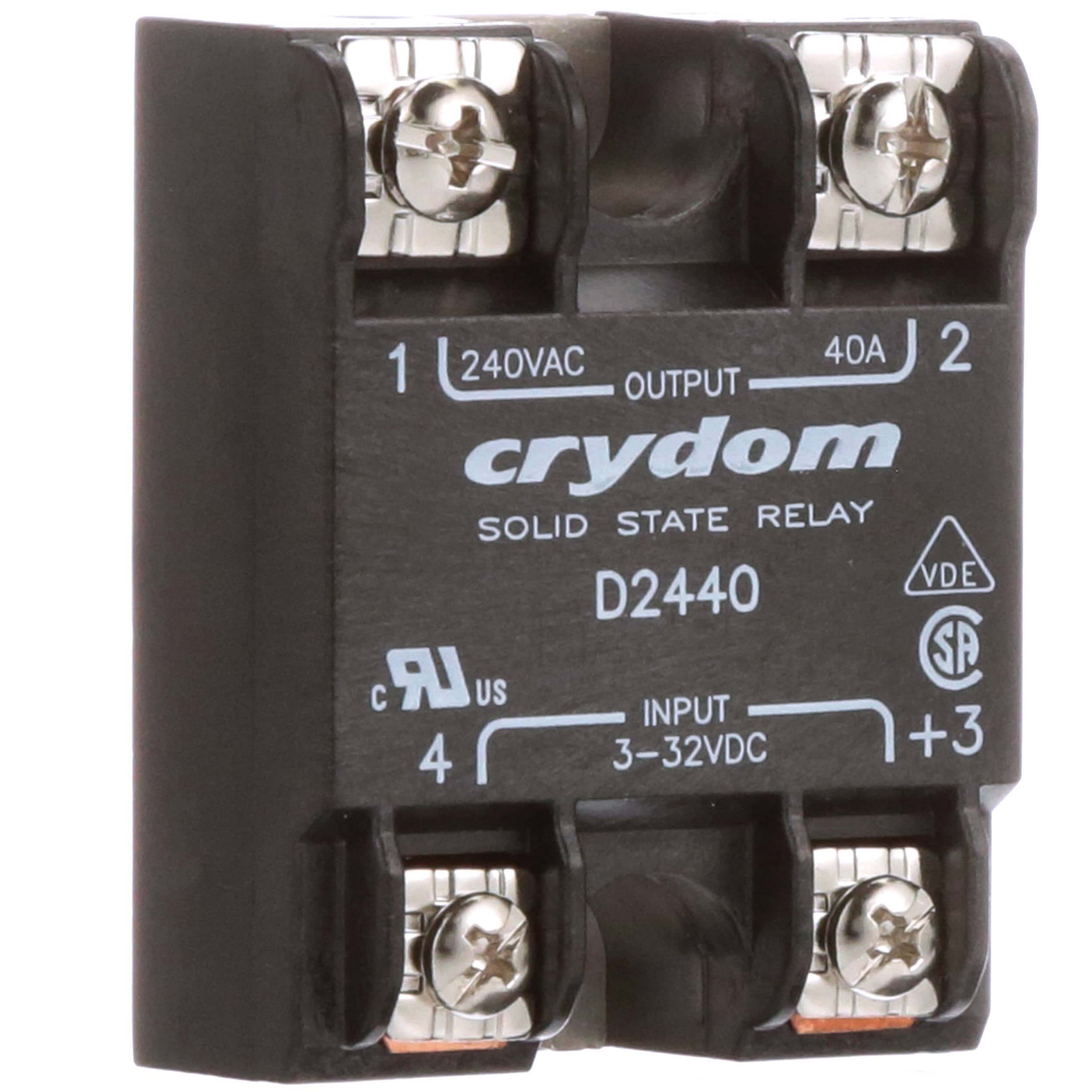

D2440
Sensata
Solid State Relays
SSR, 40A, 240VAC
Характеристики
| Control Voltage Range | 3V DC to 32V DC |
| Operating Voltage Range | 24Vrms to 280Vrms |
| Load Current | 40A |
| Isolation Voltage | 4kV |
| Control Voltage Type | DC |
| Relay Terminals | Screw |
| SVHC | No SVHC (20-Jun-2011) |
| Blocking Voltage | 600V |
| Control Voltage DC Max | 32V |
| Control Voltage DC Min | 3V |
| External Depth | 22.2mm |
| External Diameter | 4.4mm |
| External Length / Height | 57.2mm |
| External Width | 44.4mm |
| Fixing Centres | 47.6mm |
| Load Current Min | 40mA |
| Load Current RMS Max | 40A |
| Must Release Voltage | 1V |
| Output Type | Thyristor |
| RMS Load Current Min | 40mA |
| RMS Load Voltage Max | 280V |
| RMS Load Voltage Min | 48V |
| Rate of Voltage Change dv / dt | 500V/µs |
| Resistance | 1500ohm |
| Series | 1 |
| Single Cycle Surge Current | 625A |
| Surge Current | 625A |
| Terminal Type | Screw |
