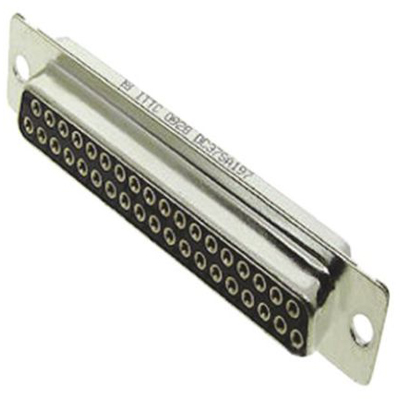

DC-37S-A197
ITT / Cannon
D-Sub Connectors
CONNECTOR, SOLDER CUP, SOCKET, 37 WAY
Характеристики
| No. of Contacts | 37Contacts |
| Gender | Receptacle |
| Contact Termination Type | Solder Cup |
| D Sub Shell Size | DC |
| Product Range | Original D Series |
| Connector Body Material | Metal Body |
| Contact Material | - |
| Contact Plating | - |
| SVHC | No SVHC (07-Jul-2017) |
| Body Plating | Tin |
| Connector Mounting | Cable Mount |
| Contact Resistance | 10mohm |
| Contact Termination | Solder |
| Current Rating | 5A |
| D Sub Connector Type | Standard |
| Flammability Rating | UL94V-0 |
| Material | Steel |
| No. of Mating Cycles | 200 |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -55°C |
| Termination Method | Solder |
| Withstand Voltage | 1250V |
