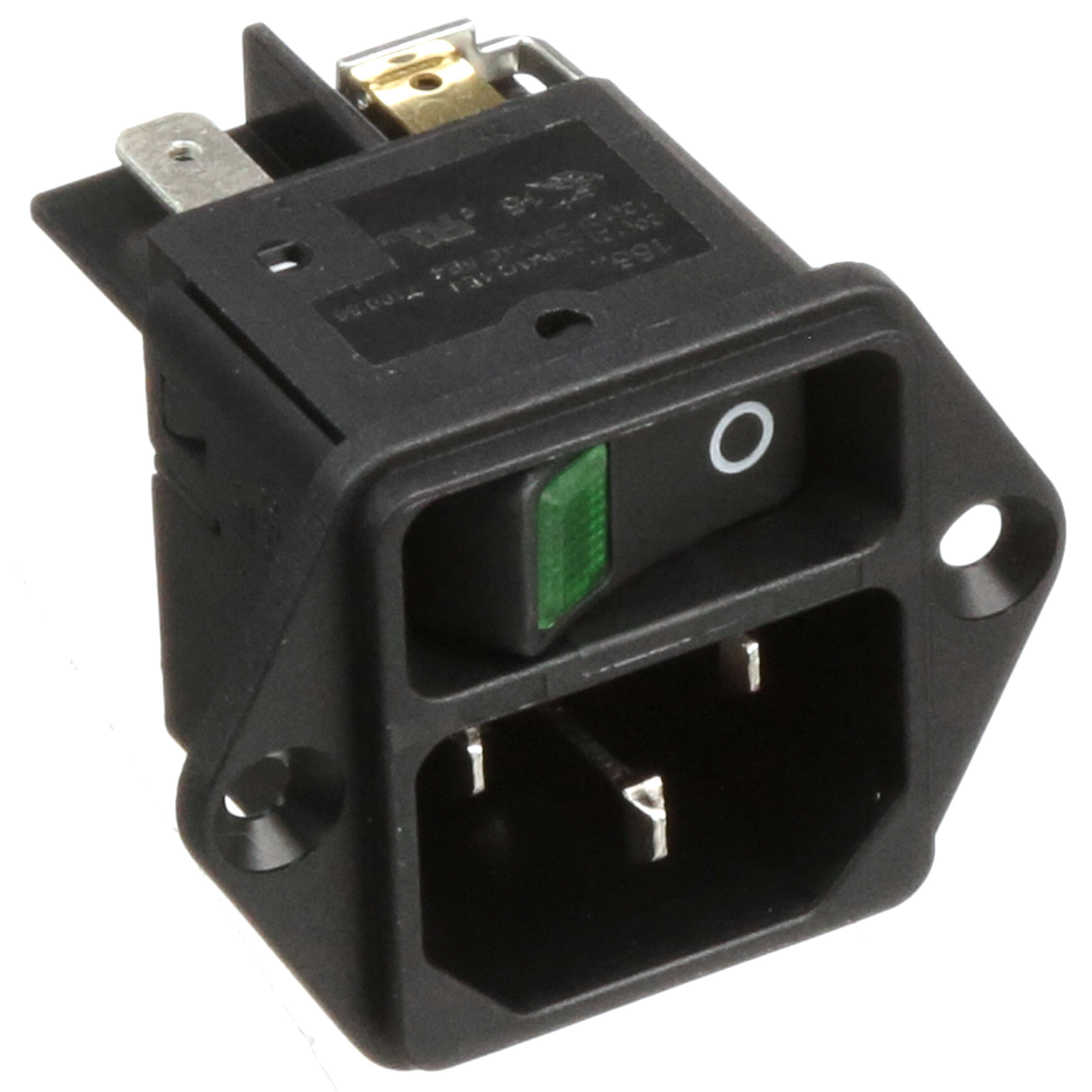

DC11.0031.001
Schurter
Power Connectors
Green / 250 V / 250 V
Характеристики
| Gender | Inlet |
| Colour | Black |
| Termination Type | Quick Connect Terminal, 4.8 mm |
| Housing Material | Thermoplastic |
| Fuse | None |
| Current Rating A | 15 |
| Inlet Type | C14 |
| Combustibility Class | UL 94 V-0 |
| UL Rating | 15 A |
| Standards Met | VDE |
| Standards Met | UL Listed |
| Standards Met | CCC |
| Voltage Rating V | 250 |
| Connector Mounting Type | Screw Mounting |
| IEC Rating | 10 A |
| Operating Temperature Max. °C | 70 |
| Mounting Orientation | Front |
| Protection Class | I |
| Operating Temperature Min. °C | -25 |
| IP Rating | IP40 |
| Switch Type | 2 Pole |
