Характеристики
| Outputs | 1 |
| Output Voltage 1 V | 24 |
| Output Current 1 A | 5 |
| Output Type | Adjustable |
| Adjustable Output Voltage Min. V | 24 |
| Adjustable Output Voltage Max. V | 29 |
| Switching Frequency kHz | 65 |
| Capacitive Load uF | 2500 |
| Rated Power W | 120 |
| Input Voltage Min. V | 250 |
| Input Voltage Max. kV | 1.5 |
| Insulation Voltage kV | 4 |
| Protection Type | Over Voltage Protection |
| Protection Type | Overload Protection |
| Protection Type | Reverse Polarity Protection |
| Protection Type | Over Temperature Protection |
| Protection Type | Under Voltage Protection |
| Isolation Test | Yes |
| Input EMI Filter | Yes |
| Efficiency % | 89 |
| MTBF h | 257200 |
| Ripple & Noise (V) mV | 240 |
| Frame | Enclosed |
| Housing Material | Aluminium |
| Mounting Type | DIN Rail Mount |
| Termination Type | Screw Terminal |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 80 |
| Length mm | 115 |
| Width mm | 63 |
| Height mm | 125.2 |
| Weight g | 845 |
| Warranty | 3 Years |

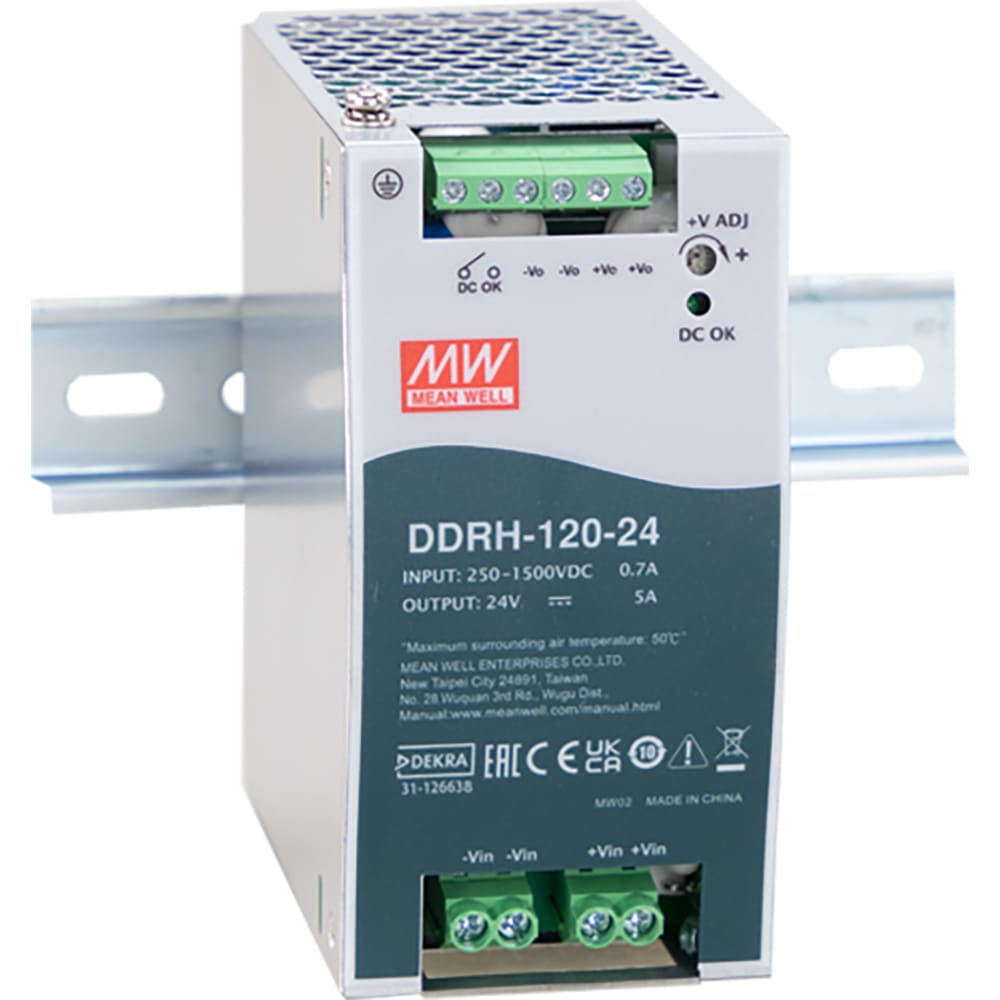

| Series | DDRH-120 |
PDFDDRH-120-24Mean WellPower Supply Modules
