Характеристики
| No. of Circuits | 2 |
| Supply Current | 80µA |
| On State Resistance Max | 50ohm |
| Supply Voltage Range | ± 15V |
| Operating Temperature Range | -40°C to +85°C |
| Analogue Switch Case Style | SOIC |
| No. of Pins | 28 |
| Multiplexer Configuration | 08:01 |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (15-Dec-2010) |
| Analogue Multiplexer Type | CMOS Differential |
| Base Number | 407 |
| Interface Type | TTL, CMOS-Logic Compatible |
| No. of Channels | 8 |
| No. of Multiplexers | 1 |
| On Resistance Rds(on) | 100ohm |
| On State Resistance Max | 50ohm |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Package / Case | SOIC |
| Supply Voltage Max | 44V |
| Supply Voltage Min | 12V |
| Supply Voltage Source | Single |
| Termination Type | SMD |

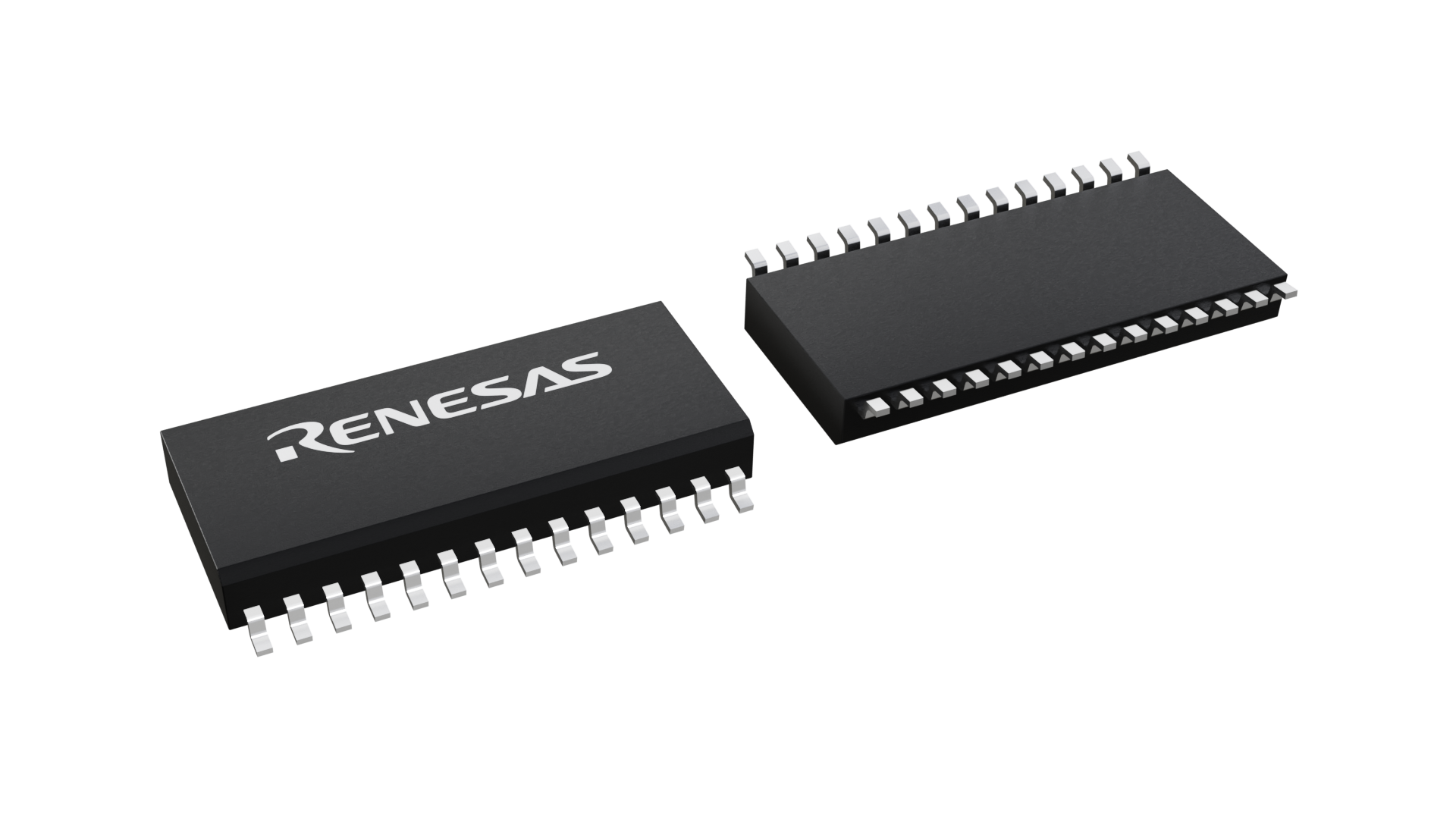

DG407DYZRenesasAnalog Switches and Multiplexers
