Характеристики
| Reverse Repetitive Voltage Max. (Vrrm) V | 600 |
| Forward Current (If) A | 1 |
| Forward Voltage (Vf) V | 1.7 |
| Reverse Current nA | 500 |
| Reverse Recovery Time (trr) ns | 35 |
| Peak Non-Repetitive Surge Current (Itsm) A | 30 |
| Configuration | Single |
| Operating Temperature Min. °C | -55 |
| Operating Temperature Max. °C | 150 |

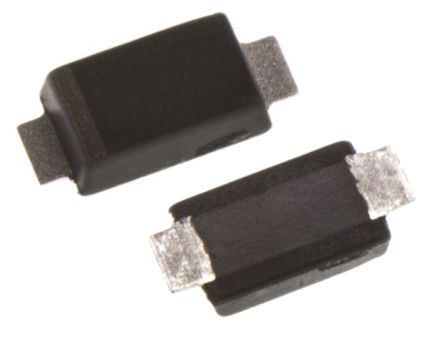

| Package Type | SOD-123F |
| Pins | 2 |
| Mounting Type | SMD |
| MSL | Level-1 |
| Packaging | Tape & Reel |
| Reflow Temperature Max. °C | 260 |
PDFES1JFLonsemiRectifier Diodes
