Характеристики
| Transistor Polarity | N and P Channel |
| Continuous Drain Current Id | 1.9A |
| Drain Source Voltage Vds | 20V |
| On Resistance Rds(on) | 250mohm |
| Rds(on) Test Voltage Vgs | 4.5V |
| Threshold Voltage Vgs Typ | 900mV |
| Transistor Case Style | SuperSOT |
| No. of Pins | 6 |
| SVHC | No SVHC (20-Jun-2011) |
| Cont Current Id N Channel 2 | 2.7A |
| Cont Current Id P Channel | 1.6A |
| Current Id Max | 2.7A |
| Current Temperature | 25°C |
| Full Power Rating Temperature | 25°C |
| No. of Transistors | 2 |
| On State Resistance N Channel Max | 80mohm |
| On State Resistance P Channel Max | 170mohm |
| Package / Case | SuperSOT-6 |
| Power Dissipation Pd | 960mW |
| Power Dissipation Pd | 960mW |
| Pulse Current Idm | 8A |
| SMD Marking | 3273 |
| Termination Type | SMD |
| Uni / Bi Directional Polarity | NP |
| Voltage Vds | 20V |
| Voltage Vds Typ | 20V |
| Voltage Vgs Max | 900mV |
| Voltage Vgs Rds on Measurement | 4.5V |
| Voltage Vgs th Max | 1.5V |
| Voltage Vgs th P Channel Max | 1.5V |

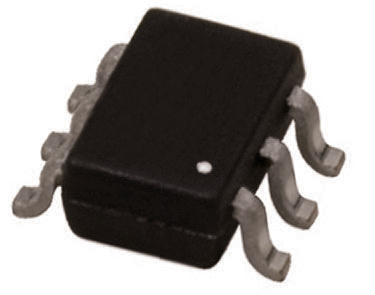

FDC6327ConsemiMOSFETs
