Характеристики
| Filter Type | IEC Inlet Filter |
| Rated inductance | 0.45(2x) |
| Voltage Rating VAC | 250 |
| Current Rating A | 6 |
| Termination Type | Faston Terminal |
| Poles | 3 |
| Inlet Type | C14 |
| Operating Temperature Min. °C | -25 |
| Operating Temperature Max. °C | 85 |
| Inductance uH | 450 |
| Capacitance Cx nF | 220 |
| Capacitance Cy nF | 2.2 |
| Resistance MOhm | 1 |
| Fused | Yes |
| Width mm | 50 |
| Height mm | 65 |
| Leakage Current uA | 373 |
| Protection Rating | IP40 |
| Combustibility Class | UL 94 V-2 |

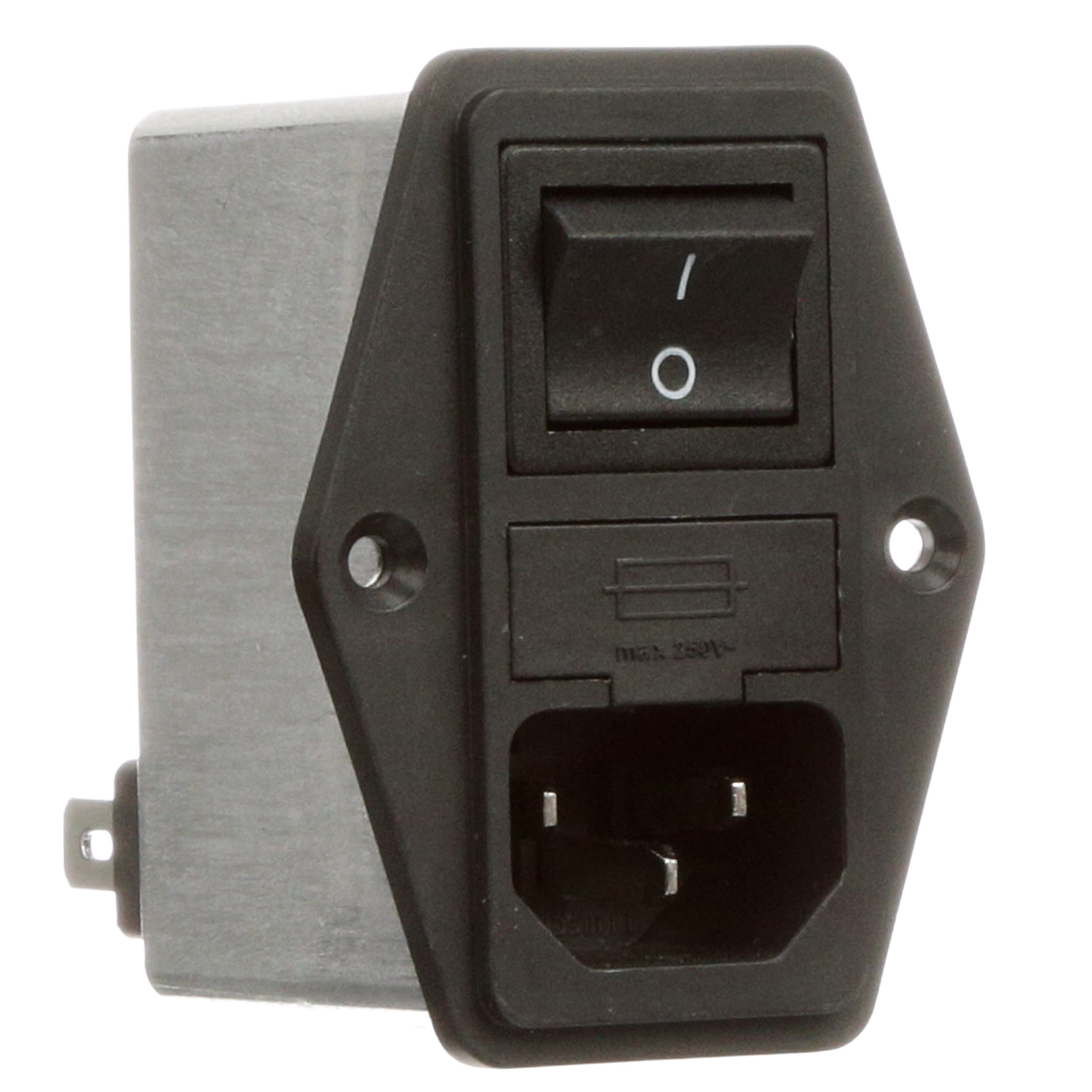

FN284-6-06SchaffnerPower Connectors
