Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 6.6A |
| Drain Source Voltage Vds | 800V |
| On Resistance Rds(on) | 1.57ohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs Typ | 5V |
| Power Dissipation Pd | 167W |
| Operating Temperature Range | -55°C to +150°C |
| Transistor Case Style | TO-220 |
| No. of Pins | 3 |
| SVHC | No SVHC (20-Jun-2011) |
| Current Id Max | 6.6A |
| Current Temperature | 25°C |
| External Length / Height | 4.83mm |
| External Width | 10.67mm |
| Full Power Rating Temperature | 25°C |
| No. of Transistors | 1 |
| On State Resistance Max | 1.9ohm |
| Package / Case | TO-220 |
| Power Dissipation Pd | 167W |
| Power Dissipation Pd | 167W |
| Pulse Current Idm | 26.4A |
| Termination Type | Through Hole |
| Voltage Vds Typ | 800V |
| Voltage Vgs Max | 30V |
| Voltage Vgs Rds on Measurement | 10V |
| Voltage Vgs th Max | 5V |

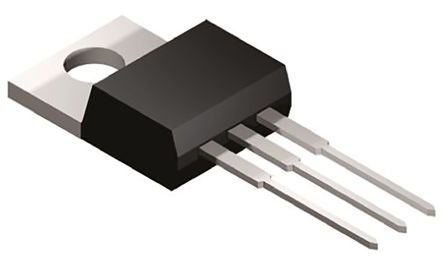

FQP7N80ConsemiMOSFETs
