Характеристики
| Actuator Type | Paddle |
| Illumination | No |
| Contact Current | 100 mA |
| Termination Type | PCB Pins |
| Housing Material | Glass Fibre-Reinforced Polyamide |
| Mounting Type | Through Hole |
| Contact Voltage - AC V | 28 |
| Contact Voltage - DC V | 28 |
| Switch Colour | Black |
| Poles | 1 |
| Width mm | 7.5 |
| Series | GW |
| Length mm | 10.22 |
| Legend | None |
| Switching Function | ON-ON |
| Height mm | 5.15 |
| Contact Configuration | 1CO |
| Cut Out Size (Rectangular) | 4.5 x 7 mm |

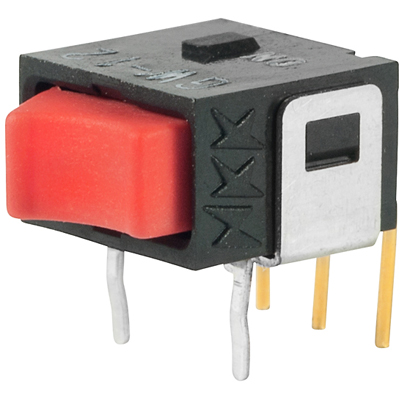

GW12RCHNKK SwitchesRocker Switches
