Характеристики
| Character Format | Dot Matrix |
| Character Size | 5.04mm |
| LED Colour | Red |
| Display Area Width | 42.93mm |
| Display Area Height | 11.43mm |
| Supply Voltage | 5V |
| Forward Current If | 800µA |
| SVHC | No SVHC (15-Dec-2010) |
| Character Width Spacing | 5.36mm |
| Display Dots x Lines | 5 x 7 |
| Display Size | 42.93mm x 11.43mm |
| Display Size | 42.93mm x 11.43mm |
| Display Technology | LED |
| External Depth | 5.3mm |
| External Length / Height | 11.4mm |
| External Width | 42.9mm |
| Forward Current If Max | 800µA |
| LCD Display Type | Alphanumeric |
| LED Colour | Red |
| Lead Spacing | 2.54mm |
| Luminous Intensity Typ | 230µcd |
| Meter Display Type | Alphanumeric |
| No. of Characters | 8 |
| Operating Temperature Range | -40°C to +85°C |
| Peak Pixel Current | 15.4mA |
| Peak Wavelength | 645nm |
| Row Pitch | 7.62mm |
| Voltage Rating | 5V |

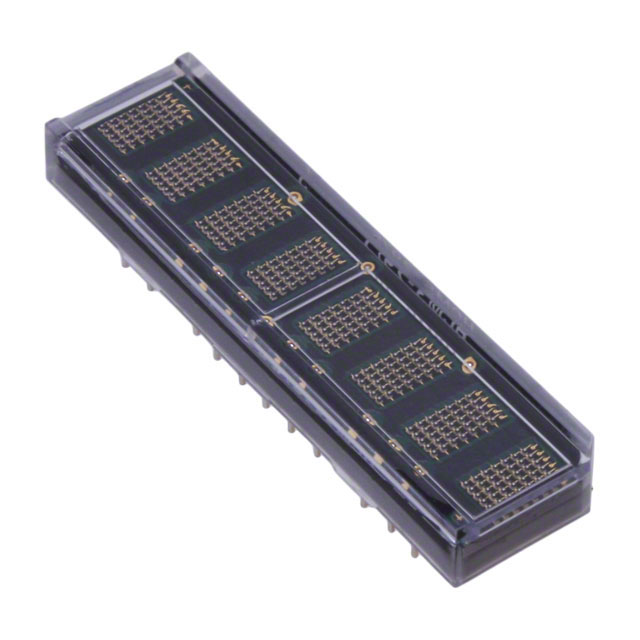

HCMS-2975AvagoLED Displays
