Характеристики
| No. of Channels | 1 |
| Voltage, Isolation | 5000V ac |
| Output Type | Logic Gate |
| Input Current | 5mA |
| Voltage, Output Max | 7V |
| Case Style | DIP-8 |
| Operating Temperature Range | -40°C to +85°C |
| Approval Bodies | CSA, IEC/EN/DIN EN 60747-5-2 Approved |
| Baud Rate Bd | 10Mbaud |
| CMR | 5kV/µs |
| External Depth | 6.35mm |
| External Length / Height | 3.56mm |
| No. of Pins | 8 |
| Optocoupler Type | Logic Gate Output |
| Temp, Op. Max | 85°C |
| Temp, Op. Min | -40°C |
| Voltage, Supply Max | 5.5V |
| Voltage, Supply Min | 4.5V |
| Width, External | 9.65mm |
| Logic Input Compatibility | LSTTL / TTL |
| Logic Output Compatibility | LSTTL / TTL |

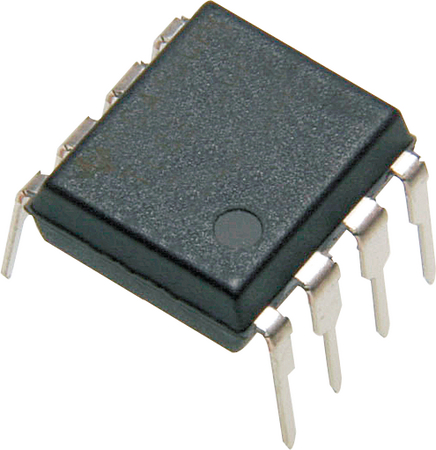

HCNW137-000EAvagoOptocouplers
