Характеристики
| No. of Channels | 1 |
| Isolation Voltage | 3.75kV |
| Optocoupler Output Type | Logic Gate |
| Input Current | 5mA |
| Output Voltage | 20V |
| Opto Case Style | DIP |
| No. of Pins | 8 |
| SVHC | No SVHC (19-Dec-2011) |
| Approval Bodies | VDE 0884, BS 415 |
| Baud Rate | 5000000 |
| CMR | 1000V/µs |
| Current Transfer Ratio Min | 20% |
| Fall Time tf | 15ns |
| Forward Current If(AV) | 1.6mA |
| Operating Temperature Range | 0°C to +85°C |
| Output Type | Logic Gate |
| Rise Time | 55ns |
| Supply Voltage | 20V |
| Test Voltage | 2500V |

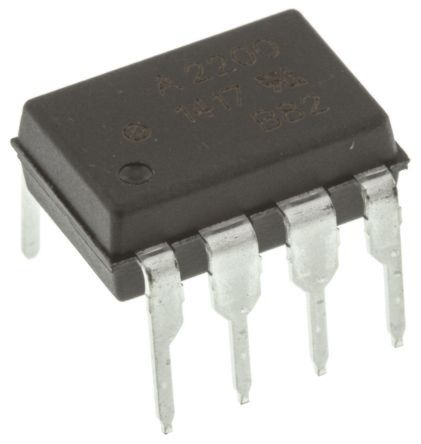

HCPL-2200-000EAvagoOptocouplers
