Характеристики
| No. of Channels | 1 |
| Voltage, Isolation | 3750V ac |
| Output Type | Logic Gate |
| Input Current | 5mA |
| Voltage, Output Max | 5.5V |
| Case Style | SMD-8 |
| Operating Temperature Range | -40°C to +85°C |
| Approval Bodies | CSA |
| CMR | 5000V/µs |
| External Depth | 6.35mm |
| External Length / Height | 3.56mm |
| Lead Spacing | 2.54mm |
| No. of Pins | 8 |
| Optocoupler Type | Logic Gate Output |
| Output Enable | Yes |
| Row Pitch | 7.62mm |
| Temp, Op. Max | 85°C |
| Temp, Op. Min | -40°C |
| Termination Type | SMD |
| Time, Fall | 50ns |
| Time, Rise | 48ns |
| Voltage, Supply Max | 5.5V dc |
| Voltage, Supply Min | 4.5V dc |
| Width, External | 9.65mm |

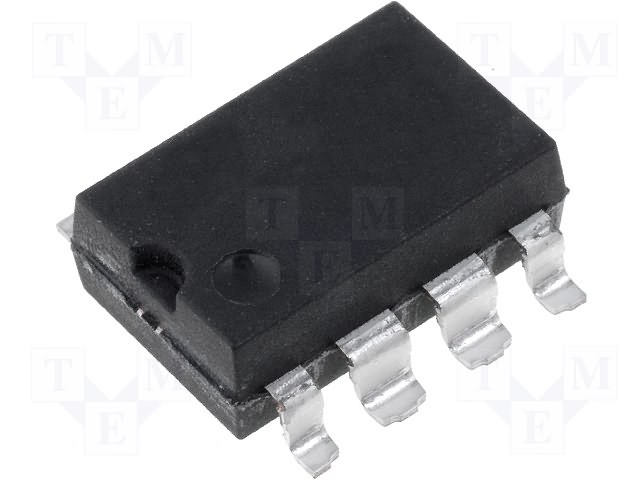

HCPL-2601-300EAvagoOptocouplers
