Характеристики
| No. of Channels | 1 |
| Voltage, Isolation | 3750V ac |
| Output Type | Transistor |
| Input Current | 20mA |
| Voltage, Output Max | 30V |
| Case Style | SMD-8 |
| Operating Temperature Range | -40°C to +100°C |
| Approval Bodies | CSA, IEC/EN/DIN EN 60747-5-2 |
| Approval Category | UL Recognised |
| CMR | 15kV/µs |
| Current, If AV | 10mA |
| External Depth | 6.35mm |
| External Length / Height | 3.56mm |
| Lead Spacing | 2.54mm |
| No. of Pins | 8 |
| Optocoupler Type | Transistor Output |
| Power Dissipation | 145mW |
| Row Pitch | 7.62mm |
| Temp, Op. Max | 100°C |
| Temp, Op. Min | -40°C |
| Termination Type | SMD |
| Time, Fall | 0.4µs |
| Time, Rise | 0.55µs |
| Voltage, Output | 15V |
| Voltage, Supply Max | 30V dc |
| Voltage, Supply Min | 4.5V dc |
| Voltage, Vcc | 15V |
| Voltage, Withstand | 3750V ac |
| Width, External | 9.65mm |
| Ratio, CTR Min | 44% |
| Ratio, CTR Typ | 90% |

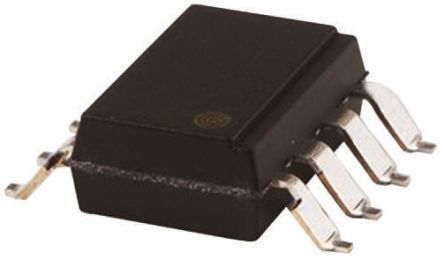

HCPL-4506-300EAvagoOptocouplers
