Характеристики
| No. of Channels | 1 |
| Isolation Voltage | 5kV |
| Optocoupler Output Type | Phototransistor |
| Input Current | 20mA |
| Output Voltage | 35V |
| Opto Case Style | SMD |
| No. of Pins | 4 |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Bodies | CSA, UL, IEC/EN/DIN EN 60747-5-2 |
| Continuous Collector Current Ic Max | 3mA |
| Current Ic Min | 0.2mA |
| Current Transfer Ratio Max | 300% |
| Current Transfer Ratio Min | 20% |
| Fall Time tf | 3µs |
| Forward Voltage VF Max | 1.4V |
| Operating Temperature Range | -30°C to +100°C |
| Output Type | Phototransistor |
| Power Dissipation Pd | 200mW |
| Power Dissipation Pd | 200mW |
| Rise Time | 4µs |
| Voltage Vf Typ | 1.2V |

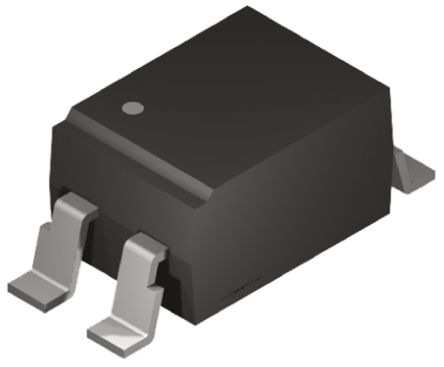

HCPL-814-300EAvagoOptocouplers
