Характеристики
| No. of Channels | 1 |
| Voltage, Isolation | 5000V |
| Output Type | Transistor |
| Input Current | 50mA |
| Voltage, Output Max | 70V |
| Case Style | DIP-4 |
| Operating Temperature Range | -55°C to +100°C |
| Approval Bodies | CSA |
| No. of Pins | 4 |
| Optocoupler Type | Standard |
| Temp, Op. Max | 100°C |
| Temp, Op. Min | -55°C |
| Time, Fall | 4000ns |
| Time, Rise | 3000ns |
| Voltage, Vf Max | 1.4V |
| Voltage, Vf Typ | 1.2V |
| Current, If CTR | 5mA |
| Ratio, CTR High Min | 160% |
| Ratio, CTR Min | 80% |
| Voltage, Breakdown Min | 70V |

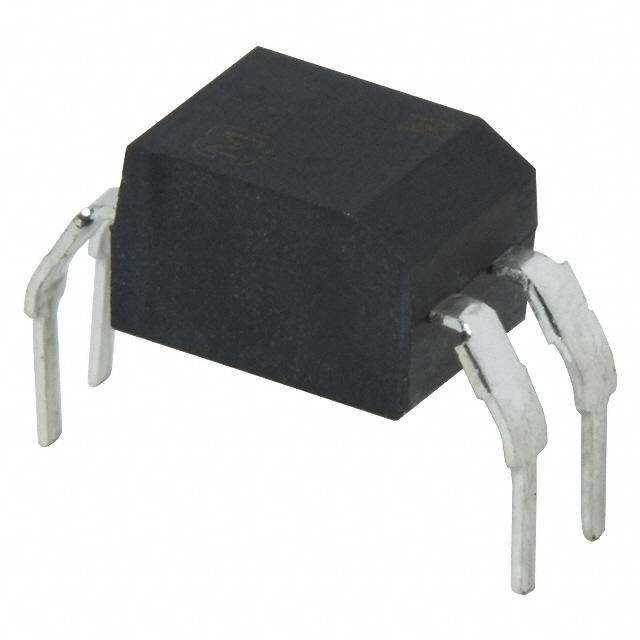

HCPL-817-W0AEAvagoOptocouplers
