Характеристики
| Operating Temperature Range | -40°C to +85°C |
| External Depth | 6.6mm |
| External Length / Height | 20.07mm |
| Width, External | 25.15mm |
| Character Size | 5.08mm |
| Character Type | Dot matrix, intellegent |
| Current, If per Segment Nom | 110mA |
| Display Technology | LED |
| Forward Current | 1mA |
| LED Colour | Green |
| Lead Spacing | 2.54mm |
| Luminous Intensity per Character @ If | 5.6mcd |
| No. of Characters | 4 |
| Row Pitch | 15.24mm |
| Supply Voltage | 5V |
| Time, Data Hold | 40ns |
| Time, Data Set Up | 50ns |
| Typ Luminous Intensity | 3.5mcd |
| Voltage, Vf Max | 5V |
| Width, Character | 3.43mm |
| Width, Character Spacing | 6.35mm |

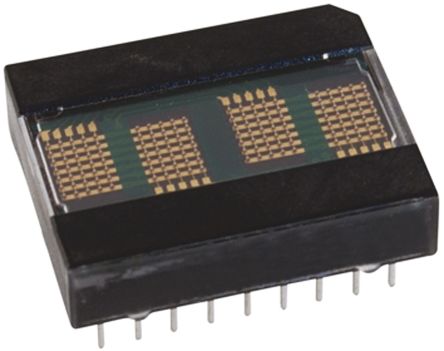

HDLG-2416AvagoLED Displays
