Характеристики
| Character Size | 14.22mm |
| LED Colour | Green |
| Common Connection | Common Cathode |
| Luminous Intensity | 3.1mcd |
| Forward Current If | 10mA |
| Forward Voltage | 2.1V |
| SVHC | No SVHC (15-Dec-2010) |
| Background Colour | Grey |
| Character Type | 8. |
| Current If Luminous Intensity | 10mA |
| External Depth | 8mm |
| External Length / Height | 17.02mm |
| External Width | 12.57mm |
| Forward Current If Max | 10mA |
| Forward Voltage VF Max | 2.1V |
| Forward Voltage per Segment @ If | 2.1V |
| Lead Spacing | 2.54mm |
| Luminous Intensity per Segment @ If Typ | 1.5mcd |
| No. of Characters | 1 |
| Nom Current If per Segment | 10mA |
| Operating Temperature Range | -40°C to +100°C |
| PIV Max | 3V |
| Row Pitch | 15.24mm |

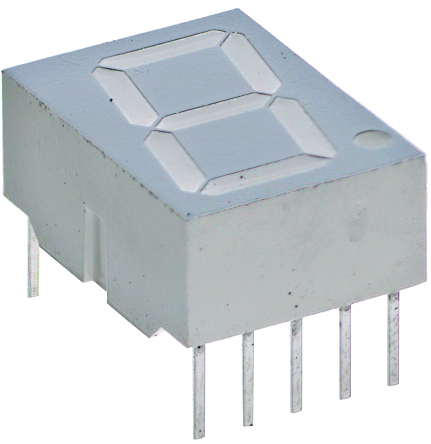

HDSP-5603AvagoLED Displays
