Характеристики
| Character Size | 7.6mm |
| LED Colour | Red |
| Common Connection | Common Anode |
| Luminous Intensity | 3.6mcd |
| Forward Current If | 20mA |
| Forward Voltage | 1.8V |
| SVHC | No SVHC (15-Dec-2010) |
| Background Colour | White |
| Character Type | 8. |
| Current If Luminous Intensity | 1mA |
| External Depth | 6.09mm |
| External Length / Height | 12.7mm |
| External Width | 7.62mm |
| Forward Current If Max | 20mA |
| Forward Voltage VF Max | 1.6V |
| Forward Voltage per Segment @ If | 1.6V |
| Lead Spacing | 2.54mm |
| Luminous Intensity per Segment @ If Typ | 0.6mcd |
| No. of Characters | 1 |
| Operating Temperature Range | -20°C to +100°C |
| PIV Max | 3V |
| Peak Forward Current | 1mA |
| Row Pitch | 5.08mm |

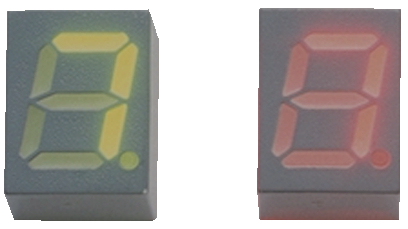

HDSP-A101AvagoLED Displays
