Характеристики
| Operating Temperature Range | -40°C to +105°C |
| External Depth | 8mm |
| External Length / Height | 17.02mm |
| Width, External | 12.57mm |
| Background Colour | Grey |
| Character Size | 14.2mm |
| Character Type | 8. |
| Common Connection | Anode |
| Current, If Luminous Intensity | 20mA |
| Current, If per Segment Nom | 20mA |
| Forward Current | 20mA |
| LED Colour | Red |
| Lead Spacing | 2.54mm |
| No. of Characters | 1 |
| Row Pitch | 15.24mm |
| Typ Luminous Intensity | 16mcd |
| Typ Luminous Intensity per Segment, @ If | 16mcd |
| Voltage, Forward per Segment @ If | 1.8V |
| Voltage, PIV Max | 3V |
| Voltage, Vf Max | 1.8V |

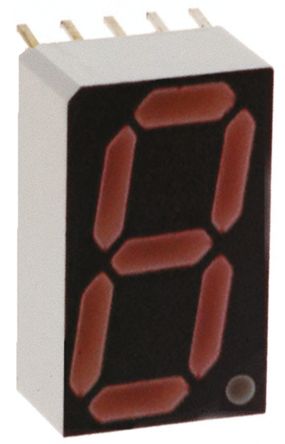

HDSP-H151AvagoLED Displays
