Характеристики
| Resolution (Bits) | 10bit |
| Sampling Rate | 125MSPS |
| Input Channel Type | Parallel |
| Data Interface | Parallel |
| Supply Voltage Range - Analogue | 2.7V to 5.5V |
| Supply Voltage Range - Digital | 2.7V to 5.5V |
| Supply Current | 23mA |
| Digital IC Case Style | SOIC |
| No. of Pins | 28 |
| Operating Temperature Range | -40°C to +85°C |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (18-Jun-2012) |
| A/D / D/A Features | CMOS, Industrial Temperature, Internal Reference |
| Base Number | 5760 |
| IC Case Style | SOIC |
| IC Generic Number | 5760 |
| Input Type | Parallel |
| Linearity Error | 0.5% |
| Linearity Error ADC / DAC + | 1LSB |
| Linearity Error ADC / DAC - | 1LSB |
| Logic Function Number | 5760 |
| No. of Bits | 10 |
| No. of Channels | 1 |
| No. of DACs | 1 |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Output Type | Current |
| Package / Case | SOIC |
| Power Dissipation Ptot Max | 165mW |
| Sample Rate | 125MSPS |
| Sample Rate | 125MSPS |
| Settling Time | 0.02µs |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 2.7V |
| Supply Voltage Range | 2.7V to 5.5V |

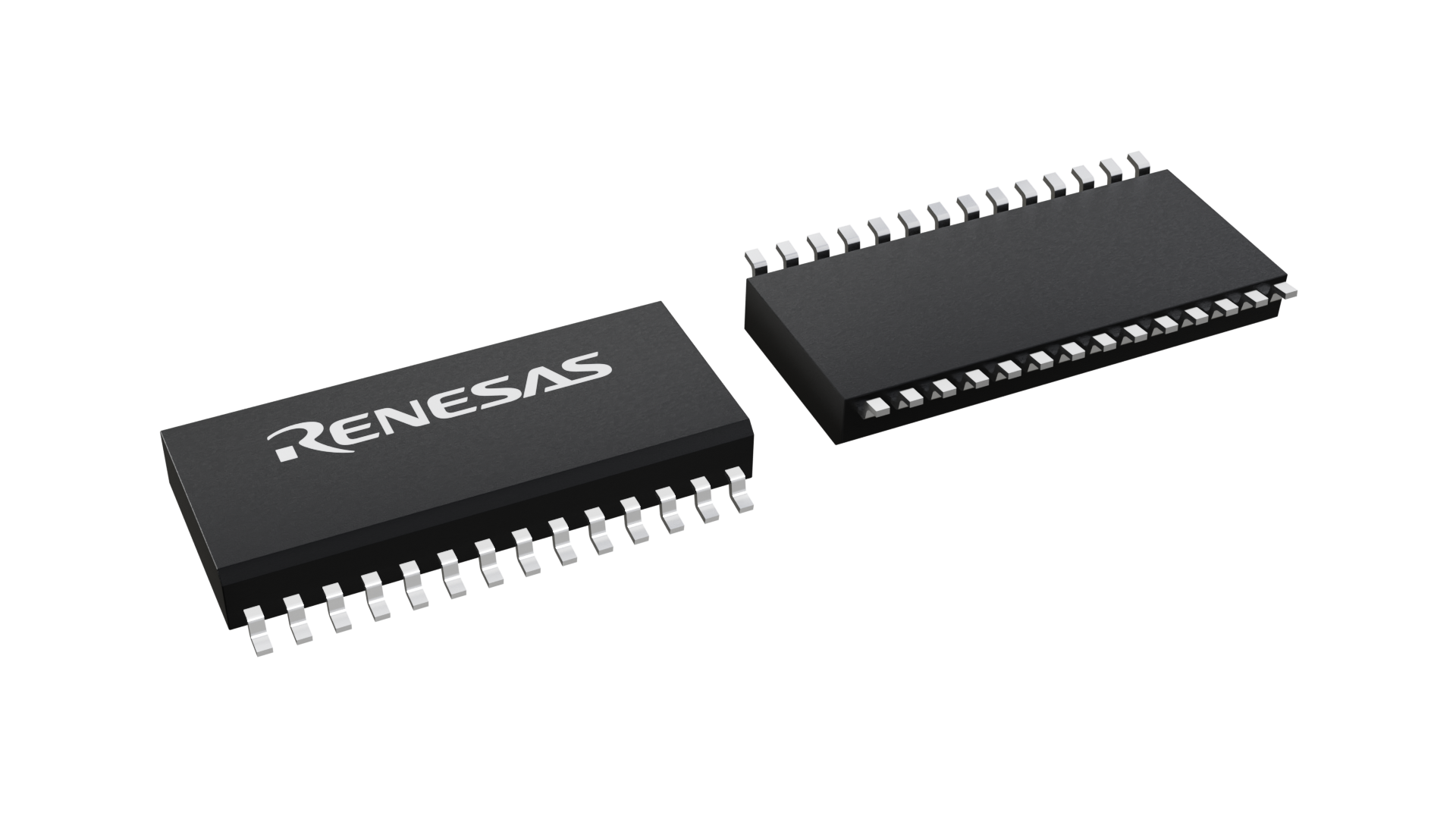

HI5760BIBZRenesasDigital to Analog Converters (DACs)
