Характеристики
| Bulb Size | T-1 3/4 (5mm) |
| LED Colour | Red |
| Luminous Intensity | 5.4mcd |
| Viewing Angle | 60° |
| Forward Current If | 10mA |
| Forward Voltage | 1.9V |
| LED Mounting | Through Hole |
| Lens Shape | Round |
| Wavelength Typ | 635nm |
| SVHC | No SVHC (15-Dec-2010) |
| Current If Luminous Intensity | 10mA |
| Dominant Wavelength | 626nm |
| External Diameter | 5.08mm |
| External Length / Height | 9.19mm |
| Forward Current If Max | 10mA |
| Forward Voltage VF Max | 1.9V |
| LED / Lamp Size | 5mm / T1.3/4 |
| LED Colour | Red HE |
| LED Colour Presentation | Tinted diffused, Wide angle |
| LED Type | Standard |
| Lead Cross-section Depth | 0.64mm |
| Lead Cross-section Width | 0.64mm |
| Lead Length | 25mm |
| Lead Spacing | 2.54mm |
| Luminous Intensity Typ | 7mcd |
| Mounting Type | Through Hole |
| No. of Pins | 2 |
| Opto Case Style | Radial Leaded |
| PIV Max | 5V |
| Package / Case | Radial |
| Peak Forward Current | 25mA |
| Peak Wavelength | 635nm |
| Voltage Vf Typ | 1.9V |

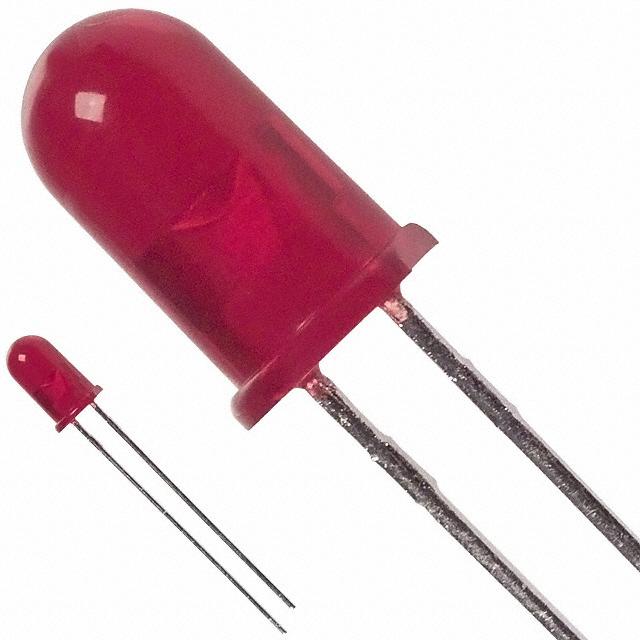

HLMP-3301AvagoLEDs
