Характеристики
| Inductance | 470nH |
| Inductance Tolerance | ± 20% |
| DC Resistance Max | 9400µohm |
| DC Current Rating | 11.5A |
| Core Material | Iron Powder |
| Inductor Case Style | 2020BZ |
| No. of Pins | 2 |
| Core Material | Powdered Iron |
| DC Current Max | 11.5A |
| External Depth | 5.18mm |
| External Length / Height | 2mm |
| External Width | 5.49mm |
| Inductor Type | High Current |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -55°C |
| Package / Case | SMD |
| Resistance | 8.9mohm |
| Saturation Current Ic | 21A |

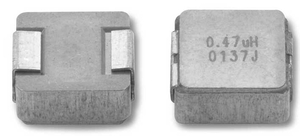

IHLP2020BZERR47M01VishayFixed Inductors
