Характеристики
| Inductance | 6.8µH |
| Inductance Tolerance | ± 20% |
| DC Resistance Max | 0.0193ohm |
| DC Current Rating | 9A |
| Inductor Case Style | 4040DZ |
| No. of Pins | 2 |
| Core Material | Iron Powder |
| Core Material | Powdered Iron |
| DC Current Max | 9A |
| External Depth | 4mm |
| External Length / Height | 11.5mm |
| External Width | 10.3mm |
| Inductor Type | High Current |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -55°C |
| Package / Case | SMD |
| Resistance | 17.5mohm |
| Resonant Frequency | 1MHz |
| Saturation Current Ic | 7.5A |

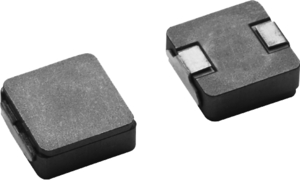

IHLP4040DZER6R8M11VishayFixed Inductors
