Характеристики
| Inductance | 1.2µH |
| Inductance Tolerance | ± 20% |
| DC Resistance Max | 2500µohm |
| DC Current Rating | 30A |
| Inductor Case Style | 5050FD |
| No. of Pins | 2 |
| Core Material | Iron Powder |
| Core Material | Powdered Iron |
| DC Current Max | 30A |
| External Depth | 6.5mm |
| External Length / Height | 13.2mm |
| External Width | 12.9mm |
| Inductor Type | High Current |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -55°C |
| Package / Case | SMD |
| Resistance | 2.1mohm |
| Saturation Current Ic | 48A |
| Tolerance + | 20% |
| Tolerance - | 20% |

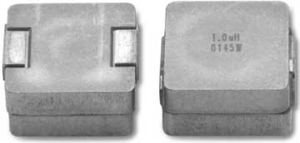

IHLP5050FDER1R2M01VishayFixed Inductors
