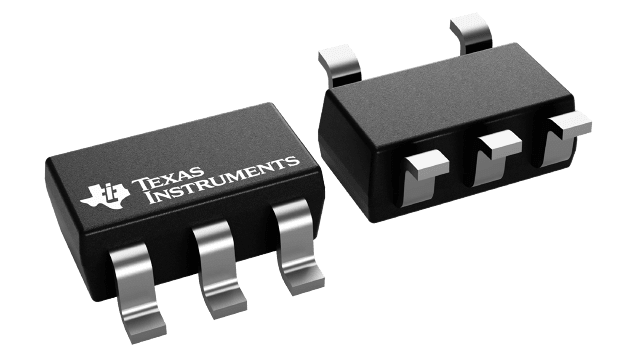

INA198AIDBVTG4
Amplifiers - Op Amps, Buffer, Instrumentation
CURRENT MONITOR, SMD, SOT-5, 198
Характеристики
| No. of Amplifiers | 2 |
| Input Bias Current | 16µA |
| Input Offset Voltage | 2mV |
| Gain dB Max | 100dB |
| Bandwidth | 500kHz |
| CMRR | 94dB |
| Slew Rate | 1V/µs |
| Supply Voltage Range | 2.7V to 18V |
| Supply Current | 700µA |
| Amplifier Case Style | SOT-23 |
| No. of Pins | 5 |
| Operating Temperature Range | -40°C to +125°C |
| SVHC | No SVHC (20-Jun-2011) |
| Accuracy | 0.75% |
| Base Number | 198 |
| Bias Current | 16µA |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Package / Case | SOT |
| Polarisation | Bipolar |
| Quiescent Current | 700µA |
| Sensor / Transducer Type | Current |
| Sensor Case Style | SOT |
| Supply Voltage Max | 18V |
| Supply Voltage Min | 2.7V |
| Termination Type | SMD |
