Характеристики
| Contact Configuration | 1NO |
| Poles | 1 |
| Actuator Type | Square Button |
| Switching Function | OFF-(ON) |
| Contact Current | 200 mA @ DC |
| Contact Current | 500 mA @ AC |
| Contact Voltage | 48 VAC |
| Cut Out Size (Diameter) mm | 13.6 |
| Legend | None |
| Termination Type | Soldering Connection |
| Mounting Type | Panel Mount |
| Switch Material | Thermoplastic |
| Switch Colour | Black |
| Protection Rating | IP67 |
| Series | IP |
| Standards Met | IEC 60529 |
| Standards Met | IEC 512 |

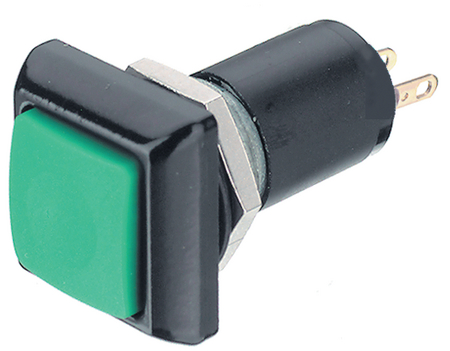

IPC3SAD2APEMPushbutton Switches
