Характеристики
| Device Type | High Side / Low Side |
| Module Configuration | High Side / Low Side |
| Peak Output Current | 2.5A |
| Input Delay | 120ns |
| Output Delay | 94ns |
| Supply Voltage Range | 10V to 20V |
| Driver Case Style | DIP |
| No. of Pins | 14 |
| Operating Temperature Range | -40°C to +125°C |
| SVHC | No SVHC (19-Dec-2011) |
| Base Number | 2110 |
| IC Generic Number | 2110 |
| Logic Function Number | 2110 |
| No. of Outputs | 2 |
| Offset Voltage | 500V |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Output Current | 2.5A |
| Output Sink Current Min | 2000mA |
| Output Source Current Min | 2000mA |
| Output Voltage | 520V |
| Output Voltage Max | 20V |
| Output Voltage Min | 10V |
| Package / Case | DIP |
| Power Dissipation Pd | 1.6W |
| Supply Voltage Max | 20V |
| Supply Voltage Min | 10V |
| Termination Type | Through Hole |
| Turn Off Time | 94ns |
| Turn On Time | 120ns |

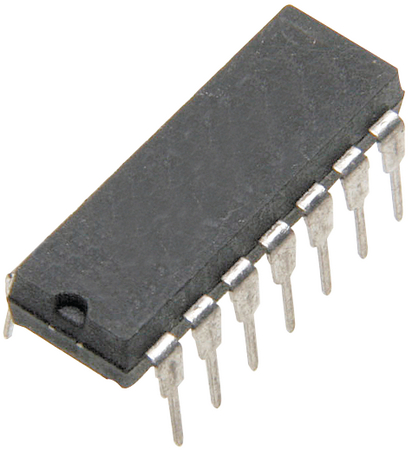

IR2110PBFInfineonGate Drivers
