Характеристики
| Device Type | Power |
| Module Configuration | 3-Phase Bridge |
| Peak Output Current | 500mA |
| Output Resistance | 55ohm |
| Input Delay | 675ns |
| Output Delay | 425ns |
| Supply Voltage Range | 10V to 20V |
| Driver Case Style | SOIC |
| No. of Pins | 28 |
| Operating Temperature Range | -40°C to +125°C |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (20-Jun-2011) |
| Base Number | 2131 |
| IC Generic Number | 2130 |
| Logic Function Number | 2131 |
| Logic IC Function | 3 High Side & 3 Low Side |
| No. of Outputs | 6 |
| Offset Voltage | 600V |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Output Current | 250mA |
| Output Sink Current Min | 420mA |
| Output Source Current Min | 200mA |
| Output Voltage | 620V |
| Output Voltage Max | 20V |
| Output Voltage Min | 10V |
| Package / Case | SOIC |
| Power Dissipation Pd | 1.6W |
| Supply Voltage Max | 20V |
| Supply Voltage Min | 10V |
| Termination Type | SMD |
| Turn Off Time | 0.6ns |
| Turn On Time | 1.3ns |
| Voltage Vcc Max | 25V |
| Voltage Vcc Min | 10V |

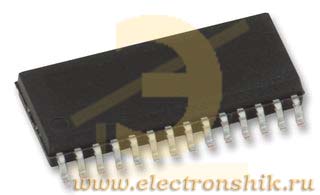

IR2130SPBFInfineonGate Drivers
