Характеристики
| Device Type | Ballast Control |
| Module Configuration | Half Bridge |
| Peak Output Current | 400mA |
| Supply Voltage Range | 10V to 25V |
| Driver Case Style | DIP |
| No. of Pins | 16 |
| Operating Temperature Range | -25°C to +125°C |
| SVHC | No SVHC (19-Dec-2011) |
| Base Number | 2166 |
| IC Generic Number | 2166 |
| Logic Function Number | 2166 |
| No. of Outputs | 2 |
| Offset Voltage | 600V |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -25°C |
| Output Current | 500mA |
| Output Sink Current | 400mA |
| Output Sink Current Min | 400mA |
| Output Source Current Max | 300mA |
| Output Source Current Min | 250mA |
| Output Voltage | 625.3V |
| Output Voltage Max | 25V |
| Output Voltage Min | 10V |
| Package / Case | DIP |
| Supply Voltage Max | 17V |
| Supply Voltage Min | 10V |
| Termination Type | Through Hole |
| Voltage Vcc Max | 25V |
| Voltage Vcc Min | 10V |

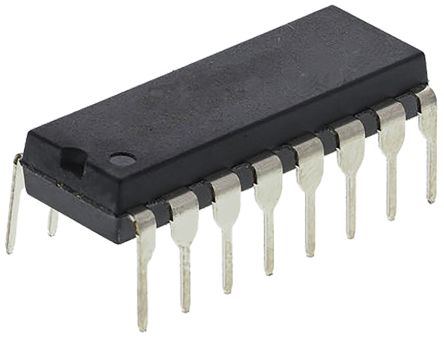

IR2166PBFInfineonPower Management ICs
