Характеристики
| Device Type | High Side / Low Side |
| Module Configuration | Half Bridge |
| Peak Output Current | 2.3A |
| Input Delay | 680ns |
| Output Delay | 270ns |
| Supply Voltage Range | 10V to 20V |
| Driver Case Style | SOIC |
| No. of Pins | 14 |
| Operating Temperature Range | -40°C to +125°C |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (20-Jun-2011) |
| Base Number | 21844 |
| IC Generic Number | 21844 |
| Logic Function Number | 21844 |
| No. of Outputs | 2 |
| Offset Voltage | 600V |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Output Current | 1.9A |
| Output Sink Current Min | 1700mA |
| Output Source Current Min | 1700mA |
| Output Voltage | 620V |
| Output Voltage Max | 20V |
| Output Voltage Min | 10V |
| Package / Case | SOIC |
| Power Dissipation Pd | 1W |
| Supply Voltage Max | 20V |
| Supply Voltage Min | 10V |
| Termination Type | SMD |
| Turn Off Time | 270ns |
| Turn On Time | 680ns |

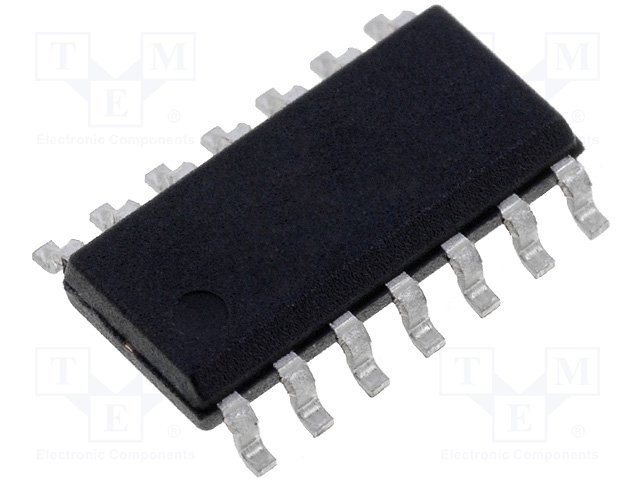

IR21844SPBFInfineonGate Drivers
