Характеристики
| Transistor Polarity | N Channel |
| Continuous Drain Current Id | 23A |
| Drain Source Voltage Vds | 400V |
| On Resistance Rds(on) | 200mohm |
| Rds(on) Test Voltage Vgs | 10V |
| Threshold Voltage Vgs Typ | 4V |
| Operating Temperature Range | -55°C to +150°C |

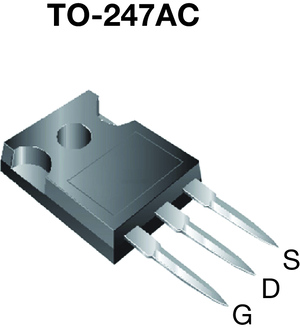

| Transistor Case Style | TO-247AC |
| No. of Pins | 3 |
| SVHC | No SVHC (20-Jun-2011) |
| Current Id Max | 23A |
| Current Temperature | 25°C |
| Full Power Rating Temperature | 25°C |
| Junction to Case Thermal Resistance A | 0.45°C/W |
| Lead Spacing | 5.45mm |
| No. of Transistors | 1 |
| Package / Case | TO-247AC |
| Power Dissipation Pd | 250W |
| Power Dissipation Pd | 250W |
| Pulse Current Idm | 92A |
| Termination Type | Through Hole |
| Voltage Vds Typ | 400V |
| Voltage Vgs Max | 20V |
| Voltage Vgs Rds on Measurement | 10V |
IRFP360PBFVishayMOSFETs
