Характеристики
| Outputs | 1 |
| Output Voltage 1 V | 24 |
| Output Current 1 A | 1.9 |
| Output Type | Fixed |
| Rated Power W | 45.6 |
| Input Voltage Min. V | 85 |
| Input Voltage Max. V | 305 |
| Efficiency % | 89.5 |
| MTBF h | 6451100 |
| Termination Type | PCB Pins |
| Ripple & Noise (V) mV | 200 |
| Operating Temperature Min. °C | -30 |
| Operating Temperature Max. °C | 70 |
| Length mm | 87 |
| Width mm | 52.5 |
| Height mm | 29.5 |
| Warranty | 3 Years |

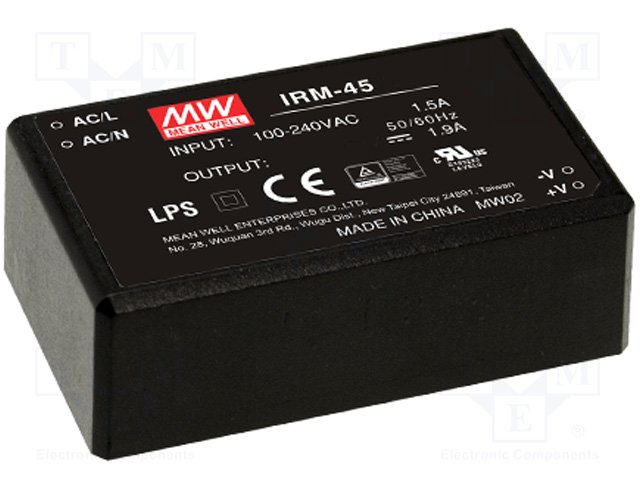

IRM-45-24Mean WellPower Supply Modules
