Характеристики
| Device Type | MOSFET |
| Module Configuration | High Side |
| Peak Output Current | 3.5A |
| Output Resistance | 3ohm |
| Input Delay | 14.1ns |
| Output Delay | 12.1ns |
| Supply Voltage Range | 2.7V to 5.5V |
| Driver Case Style | TSSOP |
| No. of Pins | 8 |
| Operating Temperature Range | -40°C to +85°C |
| SVHC | No SVHC (19-Dec-2011) |
| Base Number | 55110 |
| Fall Time tf | 1.5ns |
| Frequency | 100MHz |
| High Input Signal Voltage Max | 5.5V |
| I / O Delay | 14.1ns |
| No. of Channels | 2 |
| No. of Drivers | 2 |
| No. of Outputs | 2 |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Output Current | 3.5A |
| Output Current + Max | 3.5mA |
| Output Voltage | 14.5V |
| Output Voltage Max | 13.2V |
| Output Voltage Min | 0V |
| Package / Case | TSSOP |
| Rise Time | 1.5ns |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 2.7V |
| Termination Type | SMD |

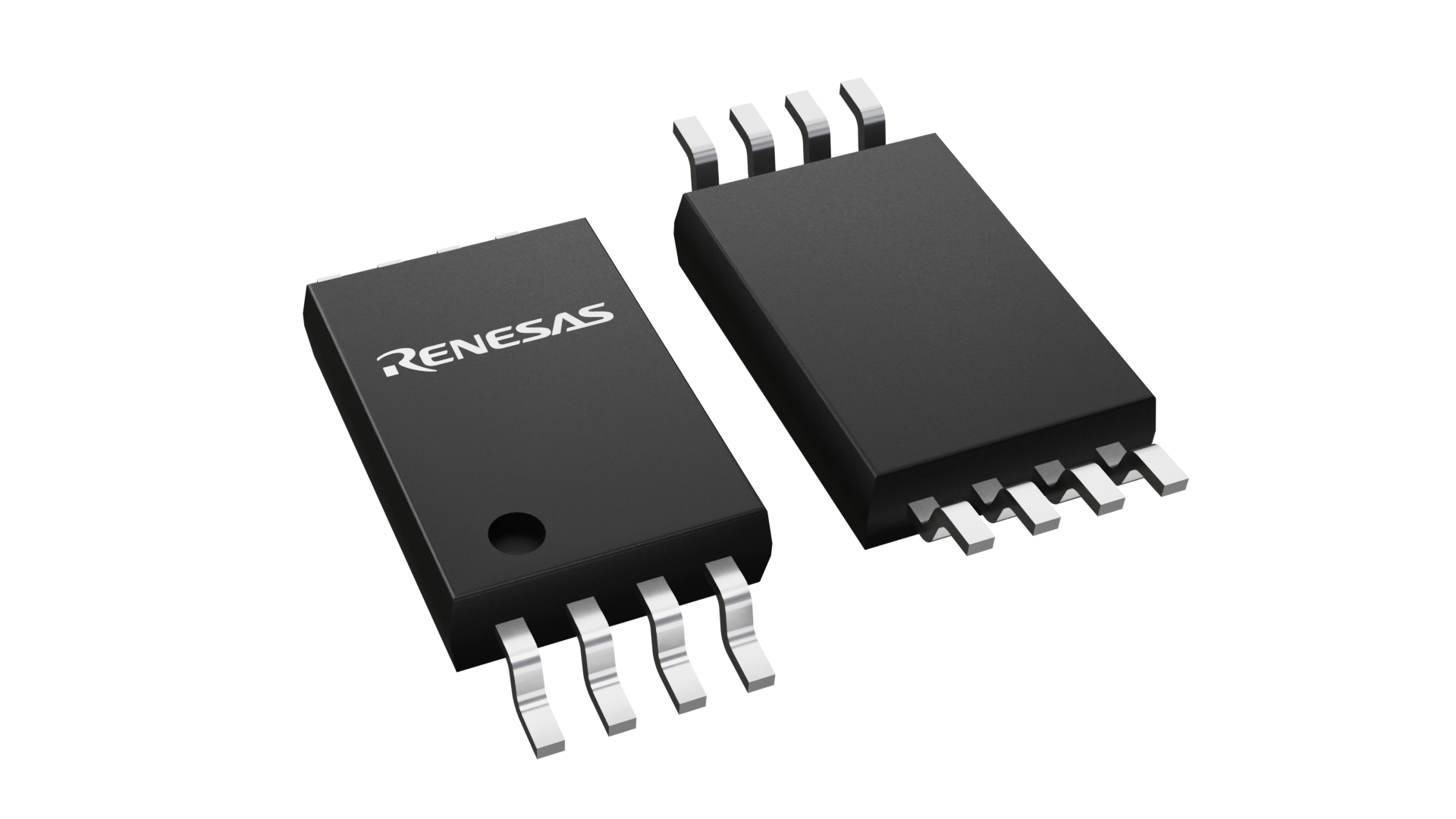

ISL55110IVZRenesasGate Drivers
