Характеристики
| Coil Voltage VDC Nom | 12V |
| Contact Current Max | 15A |
| Contact Voltage DC Nom | 16V |
| Coil Resistance | 225ohm |
| Contact Configuration | SPCO |
| Relay Mounting | PCB |
| External Height | 22mm |
| External Width | 16.4mm |
| External Depth | 16mm |
| SVHC | No SVHC (20-Jun-2011) |
| Approval Bodies | UL, CSA, TUV |
| Coil Current | 53.3mA |
| Coil Operating Lower Percent Limit | 53% |
| Coil Operating Upper Percent Limit | 133% |
| Coil Type | DC |
| Contact Configuration | SPCO |
| Contact Current AC Max | 15A |
| Contact Current DC Max | 15A |
| Contact Current Min | 15A |
| Contact Material | Silver Alloy |
| Contact Voltage DC Max | 16V |
| DC Coil Power | 640mW |
| External Length / Height | 22mm |
| Mounting Type | PCB |
| No. of Poles | 1 |
| Nom Operating Power | 640mW |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Operating Time | 10ms |
| PCB Hole Diameter | 1.3mm |
| Relay Type | Power |
| Release Time | 10ms |
| Series | JS-M |
| Switch Current Max | 10A |
| Switching Current Max | 10A |

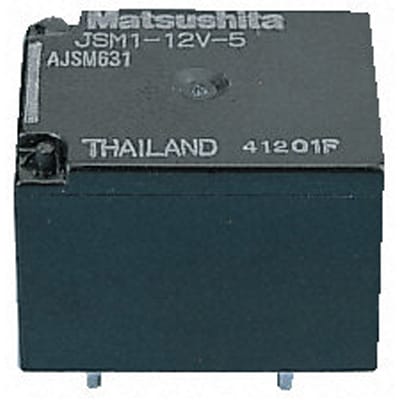

JSM1-12V-5PanasonicPower Relays
