Характеристики
| Motor Type | Bipolar Stepper Motor |
| Outputs | 2 |
| Switching Frequency kHz | 100 |
| Interfaces | PWM |
| Supply Current A | 2.8 |
| Output Current A | 2.8 |
| Supply Voltage Min. V | 8 |
| Supply Voltage Max. V | 52 |
| Operating Temperature Min. °C | -25 |
| Operating Temperature Max. °C | 125 |
| Package Type | SO-20 |
| Pins | 20 |
| Mounting Type | SMD |
| Packaging | Tube |
| Length mm | 13 |
| Width mm | 10.65 |
| Height mm | 2.65 |

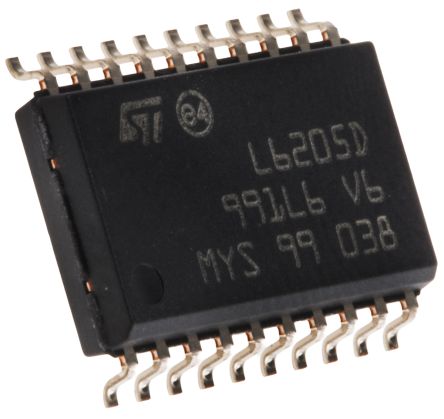

L6205DSTMicroelectronicsMotor Drivers
