Характеристики
| Operating Voltage | 230VAC |
| Switching Power AC3 | 18.5kW |
| Switching Current AC1 | 50A |
| Switching Current AC3 | 38A |
| No. of Poles | 3 |
| Contact Configuration | DPCO |
| Relay Mounting | DIN Rail |
| Coil Voltage VAC Nom | 230V |
| AC Coil Power | 7VA |
| Approval Bodies | UL, CSA |
| Breaking Capacity Current AC | 550A |
| Coil Frequency Max | 60Hz |
| Coil Operating Frequency Min | 50Hz |
| Coil Operating Lower Percent Limit | 80% |
| Coil Operating Upper Percent Limit | 110% |
| Coil Type | AC |
| Contact Configuration | 1NO / 1NC |
| Contact Current Max | 50A |
| Contact Material | Silver Nickel |
| Contact Voltage AC Max | 690V |
| External Depth | 92mm |
| External Length / Height | 85mm |
| External Width | 45mm |
| IP/NEMA Rating | IP2X |
| Insulation Voltage | 690V |
| Main Contact Current AC1 Max | 50A |
| Main Contact Current AC3 Max | 38A |
| Mounting Type | DIN Rail |
| Operating Temperature Max | 60°C |
| Relay Mounting | DIN Rail |
| Relay Type | Contactor |
| Series | LC |
| Standard | EN60947 - 1 |

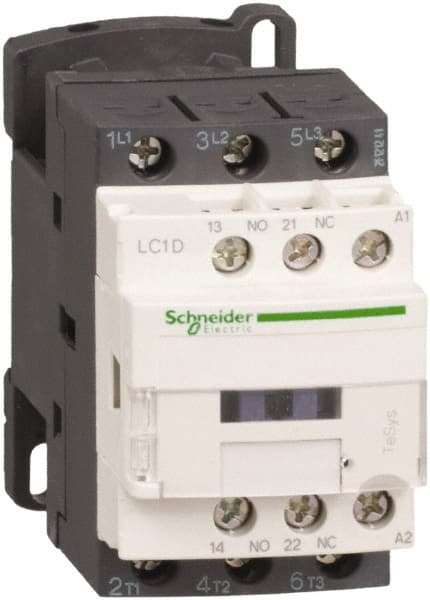

LC1D38P7Schneider ElectricIndustrial Contactors
