Характеристики
| Output Type | Fixed |
| Input Voltage Min | 3V |
| Input Voltage Max | 16V |
| Fixed Output Voltage Nom. | 2.5V |
| Adjustable Output Voltage Min | - |
| Adjustable Output Voltage Max | - |
| Output Current | 500mA |
| Dropout Voltage Vdo | 400mV |
| LDO Regulator Case Style | TO-252 |
| No. of Pins | 3Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | 2.5V 500mA LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | - |
| SVHC | No SVHC (17-Dec-2015) |
| Accuracy % | 2% |
| Base Number | 25 |
| No. of Outputs | 1Outputs |
| Operating Temperature Range | -40°C to +125°C |
| Output Voltage Min | 2.475V |
| Output Voltage Nom. | 2.5V |
| Primary Input Voltage | 16V |
| Supply Voltage Min | 3.5V |
| Termination Type | Surface Mount Device |
| Voltage Regulator Type | Automotive Grade 2.5V Voltage Regulator |

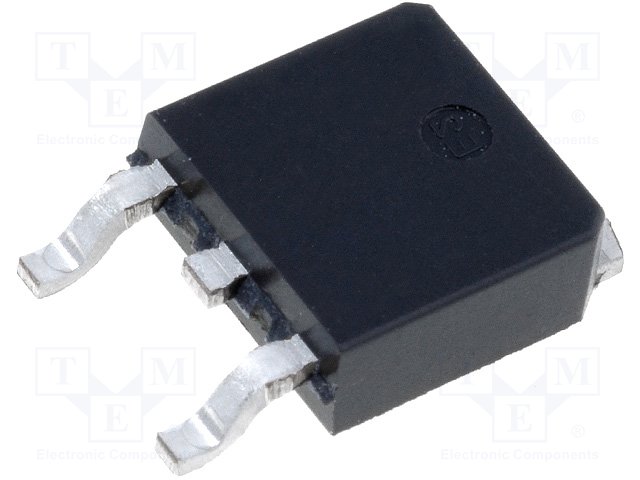

LF25CDT-TRSTMicroelectronicsLDO Voltage Regulators
