Характеристики
| Load Voltage Max | 350V |
| Load Current | 150mA |
| On State Resistance Max | 20ohm |
| Isolation Voltage | 3.75kV |
| Forward Current If | 900µA |
| Approval Bodies | CSA |
| Approval Category | UL Recognised |
| Contact Configuration | SPST |
| External Depth | 6.4mm |
| External Length / Height | 3.55mm |
| External Width | 8.6mm |
| I/O Capacitance | 3pF |
| Leakage Current | 0.08µA |
| Load Current RMS Max | 150mA |
| Load Voltage DC Max | 350V |
| Load Voltage Range | 350V |
| No. of Pins | 6 |
| Off State Resistance Min | 0.1Gohm |
| On State Resistance Max | 25ohm |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -40°C |
| Series | LH1501 |
| Terminal Type | Through Hole |
| Termination Type | Through Hole |
| Turn Off Time | 1ms |
| Turn On Time | 3ms |

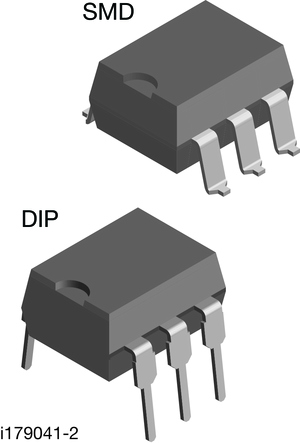

LH1501BTVishaySolid State Relays
