Характеристики
| Diode Type | Schottky |
| Diode Configuration | Single |
| Repetitive Reverse Voltage Vrrm Max | 40V |
| Forward Current If(AV) | 200mA |
| Forward Voltage VF Max | 600mV |
| Reverse Recovery Time trr Max | 10ns |
| Forward Surge Current Ifsm Max | 15A |
| Operating Temperature Range | -65°C to +150°C |
| Diode Case Style | SOD-80 |
| No. of Pins | 2 |
| Current Ifsm | 15A |
| Forward Voltage | 600mV |
| Junction Temperature Tj Max | 125°C |
| Package / Case | SOD-80 |
| Reverse Recovery Time trr Typ | 10ns |
| Termination Type | SMD |

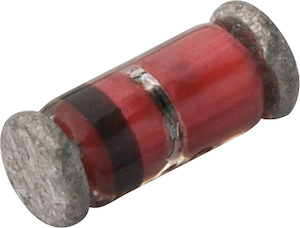

LL103A-GS08VishaySchottky Diodes
