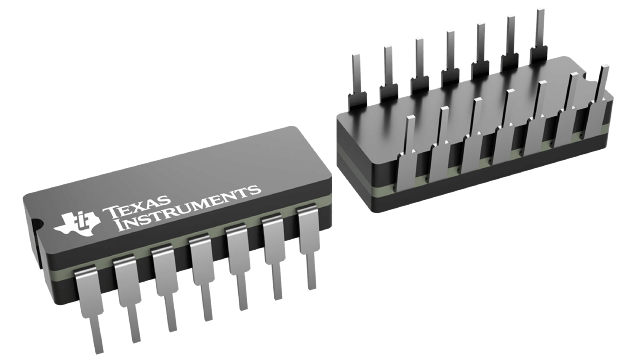

LM124J
Amplifiers - Op Amps, Buffer, Instrumentation
OP AMP, QUAD MIL SPEC, DIP14, 124
Характеристики
| Op Amp Type | Low Power |
| No. of Amplifiers | 4 |
| Bandwidth | 1MHz |
| Slew Rate | 0.5V/µs |
| Supply Voltage Range | ± 1.5V to ± 16V |
| Amplifier Case Style | DIP |
| No. of Pins | 14 |
| Operating Temperature Range | -40°C to +125°C |
| SVHC | No SVHC (19-Dec-2011) |
| Amplifier Type | Operational |
| Base Number | 124 |
| Gain Bandwidth | 1MHz |
| IC Generic Number | 124 |
| Input Offset Voltage Max | 7mV |
| Logic Function Number | 124 |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Package / Case | DIP |
| Slew Rate | 0.5V/µs |
| Supply Voltage + Nom | 5V |
| Supply Voltage Max | 32V |
| Supply Voltage Min | 3V |
| Termination Type | Through Hole |
LM124JTexas InstrumentsAmplifiers - Op Amps, Buffer, Instrumentation
