Характеристики
| Voltage Reference Type | Shunt - Fixed |
| Product Range | LM236 Series |
| Reference Voltage | 2.49V |
| Initial Accuracy | 1% |
| Temperature Coefficient | - |
| Voltage Reference Case Style | SOIC |
| No. of Pins | 8Pins |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 1 - Unlimited |
| SVHC | No SVHC (27-Jun-2018) |
| Accuracy % | 1% |
| Base Number | 236 |
| No. of Outputs | 1Outputs |
| Operating Temperature Range | -25°C to +85°C |
| Output Current Max | 0.01A |
| Reference Volt Tolerance ±% | 0.2% |
| Reference Volts | 2.5V |
| Termination Type | Surface Mount Device |
| Tolerance | 1% |
| Topology | Shunt |

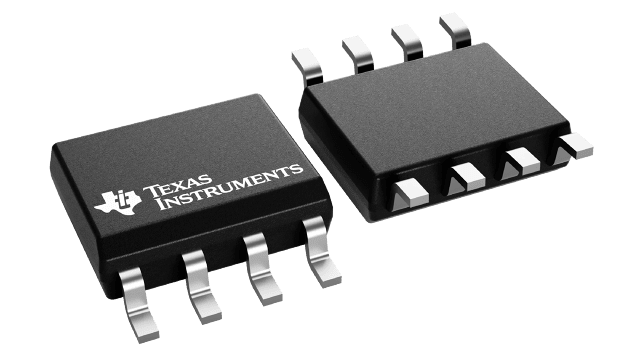

LM236D-2-5Texas InstrumentsVoltage References
