Характеристики
| Primary Input Voltage | 40V |
| No. of Outputs | 1 |
| Output Voltage | 60V |
| Output Current | 3A |
| Voltage Regulator Case Style | TO-220 |
| No. of Pins | 5 |
| Operating Temperature Range | -40°C to +125°C |
| SVHC | No SVHC (19-Dec-2011) |
| Accuracy % | 4% |
| Adjustable Output Voltage Min | 1.285V |
| Base Number | 2585 |
| Device Marking | LM2585T-ADJ |
| Frequency | 100kHz |
| IC Generic Number | 2585 |
| Input Voltage Max | 40V |
| Input Voltage Min | 3.5V |
| Operating Temperature Max | 125°C |
| Operating Temperature Min | -40°C |
| Output Current Max | 3A |
| Output Voltage Max | 60V |
| Output Voltage Min | 5V |
| Package / Case | TO-220 |
| Power Supply IC Type | Step-down switching regulator |
| Supply Voltage Max | 40V |
| Supply Voltage Min | 4V |
| Switch Output Current Isw Max | 3A |
| Termination Type | Through Hole |
| Voltage Regulator Type | Switching, Step Up (Boost), Flyback |

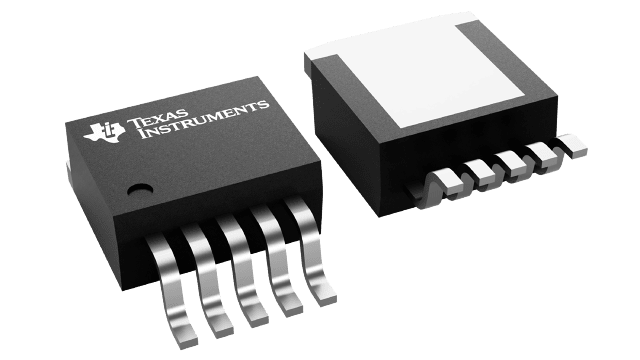

LM2585T-ADJTexas InstrumentsVoltage Regulators - Switching
