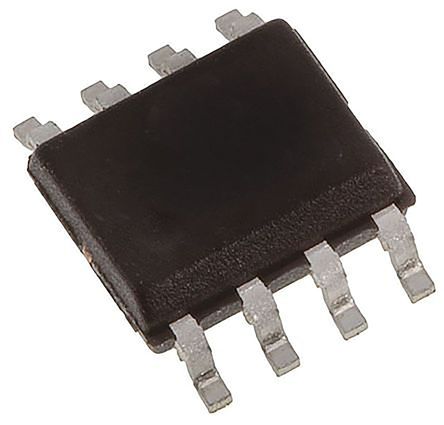

LM2904DT
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Low Power |
| Gain Bandwidth MHz | 1.1 |
| us | 0.6 |
| Input Offset Voltage mV | 9 |
| Input Bias Current nA | 20 |
| Amplifiers | 2 |
| Common Mode Rejection Ratio (CMRR) dB | 85 |
| Power Supply Rejection Ratio (PSRR) dB | 100 |
| Voltage Gain dB | 100 |
| √Hz | 55 |
| Output Current per Channel mA | 40 |
| Supply Current mA | 2 |
| Single Supply Voltage Min. V | 3 |
| Single Supply Voltage Max. V | 30 |
| Dual Supply Voltage Min. V | 1.5 |
| Dual Supply Voltage Max. V | 15 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 125 |
| Package Type | SO-8 |
| Pins | 8 |
| Mounting Type | SMD |
| Packaging | Tape & Reel |
| Length mm | 4.9 |
| Width mm | 6 |
| Height mm | 1.75 |
| Power Supply Type | Dual |
| Power Supply Type | Single |
