Характеристики
| Amplifier Class | B |
| No. of Channels | 1 |
| Output Power | 68W |
| Supply Voltage Range | 20V to 84V |
| THD + N | 0.03% @ 30W, 8ohm, V=28V |
| Load Impedance | 8ohm |
| Operating Temperature Range | -20°C to +85°C |
| Amplifier Case Style | TO-220 |
| No. of Pins | 11 |
| SVHC | No SVHC (15-Dec-2010) |
| Amplifier Type | Power |
| Bandwidth | 3MHz |
| Base Number | 3886 |
| Device Marking | LM3886TF |
| IC Generic Number | 3886 |
| Input Offset Voltage Max | 10mV |
| Load Impedance Min | 4ohm |
| Logic Function Number | 3886 |
| No. of Amplifiers | 1 |
| Operating Temperature Max | 85°C |
| Operating Temperature Min | -20°C |
| Output Power Pout | 50W @ 8ohm |
| Package / Case | TO-220 |
| Power Rating RMS | 68W |
| Slew Rate | 19 |
| Supply Voltage + Nom | 20V |
| Supply Voltage Max | 84V |
| Supply Voltage Min | 20V |
| Termination Type | Through Hole |
| Total Harmonic Distortion | 0.03% |

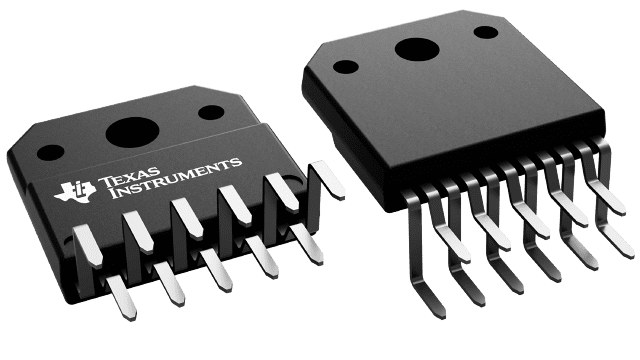

LM3886TFTexas InstrumentsAmplifiers - Audio
