Характеристики
| Outputs | 1 |
| Output Voltage 1 V | 5 |
| Output Voltage Nominal 1 V | 5 |
| Output Current 1 A | 20 |
| Output Type | Adjustable |
| Rated Power W | 100 |
| Input Voltage Min. V | 85 |
| Input Voltage Nominal | 100 ... 240 VAC |
| Input Voltage Nominal | 120 ... 370 VDC |
| Input Voltage Max. V | 264 |
| Efficiency % | 75 |
| MTBF h | 287900 |
| Termination Type | Pin Connector |
| Ripple & Noise (V) mV | 100 |
| Operating Temperature Min. °C | -10 |
| Operating Temperature Max. °C | 60 |
| Length mm | 222 |
| Width mm | 62 |
| Height mm | 33.6 |
| Warranty | 3 Years |

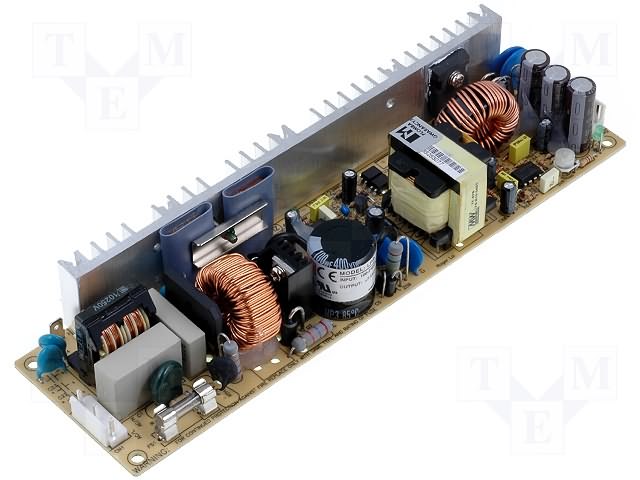

LPP-100-5Mean WellOff-Board Modules
