Характеристики
| Resistance | 10ohm |
| Resistance Tolerance | ± 5% |
| Power Rating | 30W |
| Voltage Rating | 250V |
| Temperature Coefficient | ± 150ppm/°C |
| Resistor Element Material | Ceramic |
| Resistor Case Style | TO-220 |
| Resistor Mounting | Through Hole |
| SVHC | No SVHC (15-Dec-2010) |
| External Depth | 3.2mm |
| External Length / Height | 16.2mm |
| External Width | 10.4mm |
| No. of Pins | 2 |
| Operating Temperature Max | +150°C |
| Operating Temperature Min | -55°C |
| Operating Temperature Range | -55°C to +150°C |
| Package / Case | Radial |
| Series | LTO |
| Temperature Coeff. + | 150ppm/°C |
| Temperature Coeff. - | 150ppm/°C |
| Tolerance + | 5% |
| Tolerance - | 5% |
| Voltage Rating V DC | 250V |

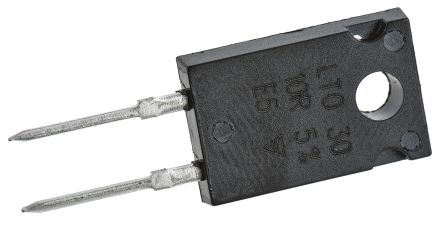

LTO030F10R00JTE3VishayThrough-Hole Resistors
