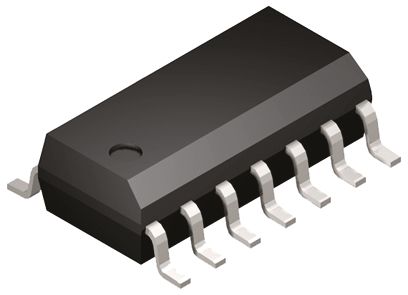

MCP6004T-I/SL
Amplifiers - Op Amps, Buffer, Instrumentation
Slew Rate V / Input Voltage Noise Density nV
Характеристики
| Amplifier Type | Low Power |
| Gain Bandwidth MHz | 1 |
| us | 0.6 |
| Input Offset Voltage mV | 4.5 |
| Input Bias Current pA | 19 |
| Amplifiers | 4 |
| Common Mode Rejection Ratio (CMRR) dB | 60 |
| Power Supply Rejection Ratio (PSRR) dB | 86 |
| Voltage Gain dB | 112 |
| √Hz | 28 |
| Output Current per Channel mA | 23 |
| Supply Current uA | 100 |
| Single Supply Voltage Min. V | 1.8 |
| Single Supply Voltage Max. V | 6 |
| Operating Temperature Min. °C | -40 |
| Operating Temperature Max. °C | 85 |
| Package Type | SOIC |
| Pins | 14 |
| Mounting Type | SMD |
| Packaging | Tape & Reel |
| Length mm | 8.65 |
| Width mm | 3.9 |
| Height mm | 1.25 |
| Power Supply Type | Single |
MCP6004T-I/SLMicrochipAmplifiers - Op Amps, Buffer, Instrumentation
